191360 Power Distribution Module MK2A For TEV

Manufacturer: Honeywell Elm
Product Category: Power Supply and Distribution

This is a brand new product

2 In Stock

Order by 3pm for same day dispatch.


ex VAT

Additional information

Weight2.00 kg

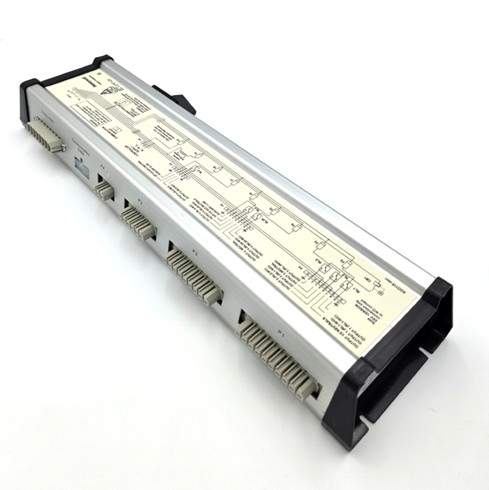

The power distribution module provides a significant advance in distributing power in a refrigerated case. Operating in conjunction with a Tuscan controller, the power distribution module’s six relays control the fused socket outlets.

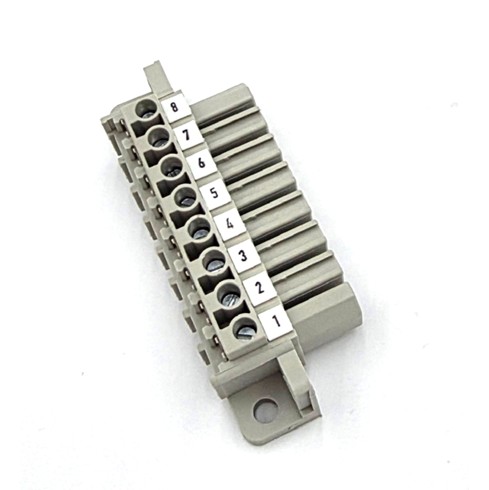

The power distribution module simplifies the wiring of a refrigerated case. Mating connectors plug into the switched sockets to supply the liquid line valve or an electronic expansion valve, the suction line valve, defrost heaters, fans and case lights. The assignment of the sockets, shown in the diagram overleaf, may be modified by the controller’s bit switches — see the installation guide for the associated Tuscan controller.

A rotary two-position isolator switch on the side panel controls the supply to the relay contacts.

This version of the Mk2a Power Distribution module controls a thermostatic expansion valve


Power Distribution Module Specification sheet
