Description

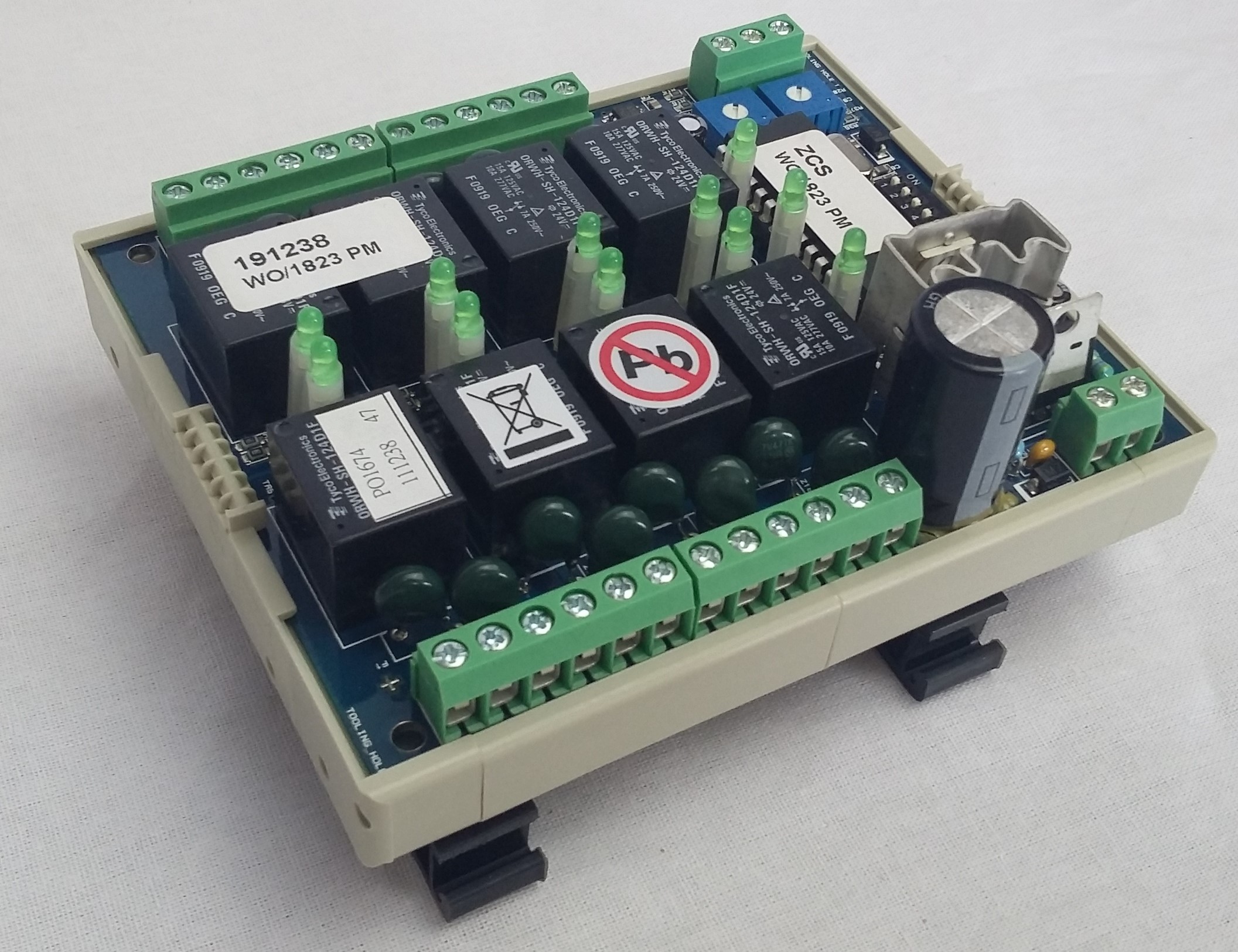

The Honeywell Step Controllers enable operation of multicompressor refrigeration packs or condenser fans using a sequential or cyclic switching sequence.
Stage Up or Stage Down is determined via a dead band pressure switch, across a set of eight volts-free normally open contacts. The contacts provide simple step control of up to eight stages of compressor / condenser fans, with an interval maximum of six-minutes between successive starts of any switching stages.
Six bit-switches located on the board ensure easy configuration for any application. On and Off delays for compressors / condenser fans are fully adjustable using two potentiometers. On-board LED provides illuminated status of individual relay outputs, as well as illuminated indicating for Power, Up and Down.
The Step Controllers have integral diagnostic routines to enable quick on-site fault finding. There are two versions of the Step Controller: 24Vac or 240Vac, however each relay is capable of switching 240Vac (5A).
Features:
- Sequential or cyclic switching sequence.
- 24V or 240V models
- Provides eight volts-free normally open contacts for simple step control of up to eight stages.
- Easily set switching delays.
- Six-minute intervals between successive starts of any switching stage.
- On and Off delays for compressor / condenser fans which are fully adjustable using two potentiometers.
- Integral diagnostic routines for on-site fault finding.
- On-board LED provides status of individual relay outputs, as well as indicating power-up or down.
